Common Electrical Problems Heavy-Duty Trucks and How to Diagnose Them

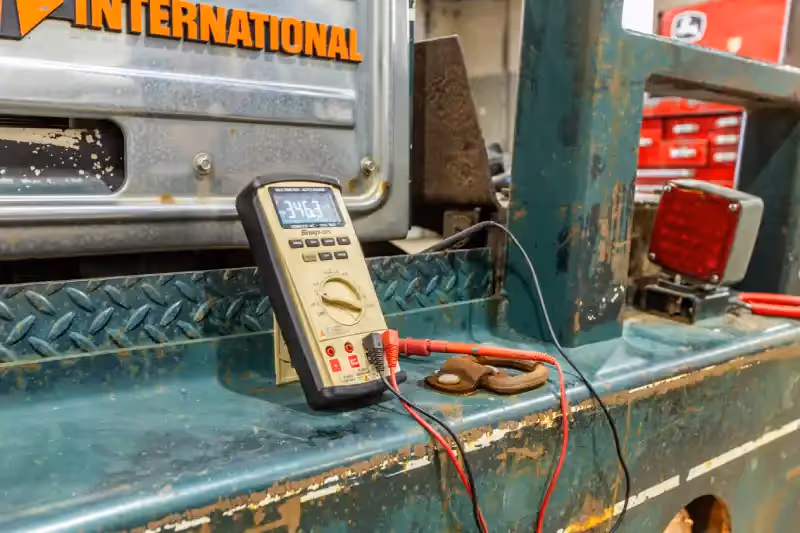

Heavy-duty truck in for electrical repairs

Every truck driver knows the feeling — you’re about to start your truck, but instead, you’re met with a clicking sound from a battery that refuses to budge. Electrical problems are one of the most common sources of truck breakdowns, and as a truck operator, the last thing you want is an electrical glitch throwing a wrench into your operation.

The electrical system in heavy-duty trucks is the nerve center, controlling crucial functions, from starting the engine to powering the lights and accessories. When electrical issues strike, you need to be not just a driver but a diagnostician too. In this comprehensive guide, we will delve deep into the world of common electrical problems that plague heavy-duty trucks and equip you with the know-how to diagnose and resolve them.

Understanding the Electrical System in Heavy-Duty Trucks

Before diving into the nitty-gritty of electrical problems and their solutions, it's essential to grasp the fundamentals of the electrical system in heavy-duty trucks. This understanding will serve as the foundation for effective diagnosis and repair.

Key Components of the Electrical System

  • Battery and Alternator: The battery stores electrical energy, while the alternator generates it and keeps the battery charged.
  • Wiring and Connectors: A network of wires and connectors carries electrical power to various components throughout the truck.
  • Fuses and Relays: These protective devices prevent electrical overload and control the distribution of power.
  • Lights and Accessories: Headlights, taillights, interior lights, and various accessories rely on the electrical system for operation.

The electrical system is not just about convenience; it's integral to the truck's functionality and safety.

Common Electrical Problems in Heavy-Duty Trucks

Dead Battery

A dead battery is a common nemesis for truck drivers. It can result from various causes, including the age of the battery, parasitic drains (e.g., lights left on), or alternator issues. Symptoms are all too familiar: the engine refuses to start, the lights dim, and there's an ominous clicking sound when you turn the key.

Faulty Alternator

The alternator is the electrical powerhouse of your truck. When it falters, it can cause a host of problems. Common causes of alternator issues include worn-out brushes, damaged diodes, or belt problems. Symptoms may manifest as warning lights on the dashboard, a weak or dead battery, or even engine stalling.

Wiring Issues

Wiring issues can be elusive troublemakers. Corrosion, damage, or loose connections can disrupt the flow of electricity, leading to erratic electrical behavior and intermittent failures. These problems can be a headache to diagnose and resolve.

Blown Fuses and Relays

Fuses and relays are the guardians of your electrical system, preventing overloads and controlling the power flow. Overloading circuits, short circuits, or faulty components can cause fuses to blow and relays to malfunction. When this happens, specific systems or accessories may stop working.

Lighting Problems

Problems with lighting are not just an inconvenience; they can compromise safety on the road. Burnt-out bulbs, faulty switches, or wiring issues can result in dim or non-functional lights, creating hazardous conditions, especially during nighttime driving.

Accessory Failures

Electrical accessories, from power windows to climate control, can add comfort and convenience to your truck. When they fail, it can be frustrating. Wear and tear, along with loose connections, can render these accessories non-operational, affecting your overall driving experience.

Diagnosing Electrical Problems

Visual Inspection

The first step in diagnosing electrical issues is a visual inspection. Examine your truck's wiring, connectors, and terminals for any visible damage, corrosion, or loose connections. Identify melted fuses or relays, which are often telltale signs of electrical problems.

Using a Multimeter

A multimeter is your trusty sidekick when it comes to electrical diagnostics. It can measure voltage, current, and continuity, allowing you to test various electrical components effectively. With a multimeter in hand, you can perform step-by-step tests on critical parts of your electrical system.

Diagnostic Trouble Codes (DTCs)

Modern heavy-duty trucks come equipped with onboard diagnostic systems that generate diagnostic trouble codes (DTCs) when a problem is detected. Using a diagnostic scanner, you can retrieve these codes and interpret them to pinpoint the source of the issue. DTCs are like breadcrumbs leading you to the root cause of the problem.

Battery and Alternator Testing

Conducting a Battery Voltage Test

A simple voltage test can determine the health of your battery. Measure the voltage across the battery terminals with the engine off and then with the engine running. Comparing these readings will reveal whether the battery and alternator are working correctly.

Performing an Alternator Output Test

An alternator output test assesses the alternator's ability to provide a charge. With a multimeter, you can measure the alternator's output voltage and current. This test will help you determine if the alternator is the culprit behind your electrical woes.

Steps to Replace a Dead Battery or Faulty Alternator

If testing confirms that your battery or alternator is the problem, it's crucial to know how to replace them. We'll guide you through the steps, ensuring you have a reliable power source to keep your truck running smoothly.

Wiring and Connector Repairs

Wiring and connector issues often require meticulous attention. Repairing damaged wires or connectors is essential to restore the electrical flow. We'll explain the importance of proper soldering and crimping techniques to ensure lasting repairs. Plus, we'll provide tips on preventing future wiring woes.

Replacing Fuses and Relays

When fuses blow or relays malfunction, it's vital to identify and replace the faulty components promptly. We'll guide you through the process, from locating the problematic fuse or relay to installing the appropriate replacement. We'll also discuss precautions to prevent future electrical overloads.

Troubleshooting Lighting Problems

Lights aren't just for aesthetics; they're a safety necessity. We'll teach you how to replace burnt-out bulbs, diagnose and fix faulty switches, and address wiring issues that could compromise your visibility on the road. A well-illuminated path is a safer path.

Accessory Repair and Maintenance

Truck accessories can make your journey more comfortable and efficient. Learn how to maintain and prolong the life of these electrical conveniences. And if an accessory has seen better days, we'll show you how to replace it, restoring your truck's functionality.

Safety Considerations

Working with heavy-duty truck electrical systems requires utmost safety precautions. Always wear appropriate safety gear, including gloves and eye protection. Release all electrical power sources before starting any maintenance or repair work. If you're unsure about any aspect of electrical repair, don't hesitate to seek a truck electrical repair expert to avoid accidents and further damage.

Final Words

Maintaining a healthy electrical system in your heavy-duty truck is not just a matter of convenience; it's a matter of survival on the road. By understanding the common electrical problems that can plague your truck and learning how to diagnose and resolve them, you can keep your truck running reliably and safely. Remember, your truck's electrical system is its lifeline, so treat it with the respect and attention it deserves.
